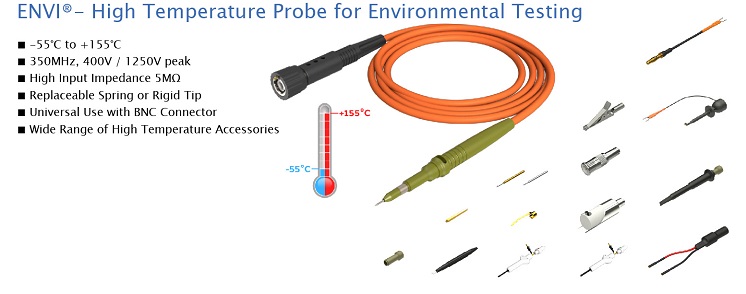

The passive probe ENVI® is ideal for environmental testing, and measurements in climate chambers from -55°C bis +155°C.

The world's first modern probe for this high temperature range with 400V / 1250V peak input voltage range, 10:1 divider and 350MHz bandwidth is suitable for a variety of applications.

Individual contacting with high signal fidelity in different applications is ensured with the replaceable spring tip and a variety of contacting accessories.

Due to its BNC connector with divider read-out function(RO)  the probe is universally connectable to any oscilloscope with 1 MΩ BNC input including automatic scaling on the oscilloscope display.

All probes are calibrated at the end of production. The factory calibration certificate is optional.

The manual of the ENVI® 5MΩ [835-312-001] can be found here: ENVI® Manual

​

ENVI® Accessories (5mm-HT)
