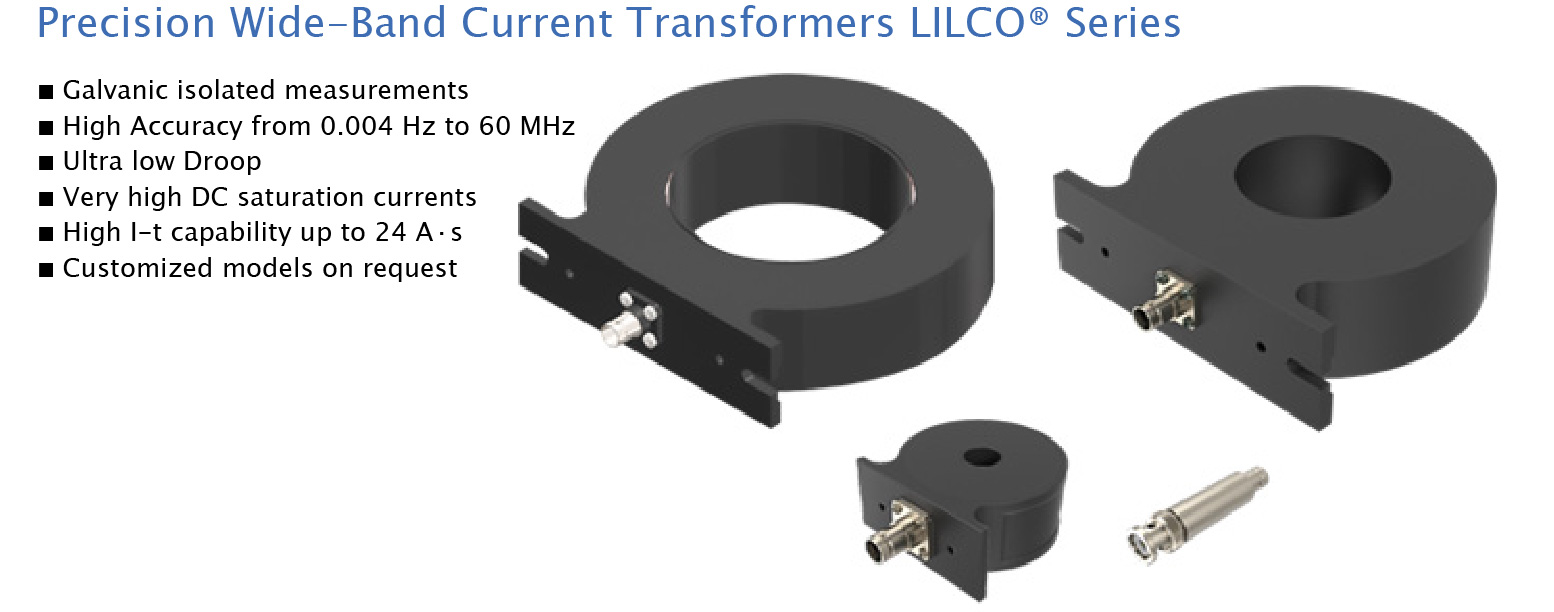

With bandwidths ranging from mHz to >60 MHz and input currents ranging from mA up to 25 kA, the LILCO® series of PMK’s current transformers enables precision high bandwidth AC current measurements, which are required for a broad range of measurement applications. The current transformers are capable of accurately measuring large pulse or continuous input currents while electrical shielding between the input and output reduces the influence of electromagnetic fields on the output.



Galvanic isolation between input and output allows the LILCO® Series to be used in measurement setups with large potential differences or where unwanted currents between input and output appear like in ground loops.



The BNC output of the LILCO® series current transformers makes it easy to connect to a variety of measurement devices, such as, oscilloscopes, digitizers, network analyzers, spectrum analyzer, power analyzers, DMM etc. with just a standard 50Ω coaxial cable.



Improved low frequency performance and increased I·t capability, as well as an attenuated output signal can be realized by changing the input termination of the measuring instrument. The LILCO® series attenuator ATT10BNCS is used to improve these specifications even more while maintaining the high frequency performance of the current transformer.



The LILCO® Series inner whole diameter in cm is included in each model number: ​

e.g. 13E1000 = 13mm (0.5‘‘), 26G0100 = 26mm (1.0‘‘), 52GH010 = 52mm (2.0‘‘), 58M1000 = 58mm (2.2‘‘), 89M0100 = 89mm (3.5‘‘)



All LILCO® current transformers are delivered with a factory calibration certificate.



The dedicated instruction manual for the LILCO® series contains a lot of valuable information about the general limitations of using current transformers and how to make accurate measurements in a single document only.



→ Download Datasheet

→ Download Manual



Specifications

Order

number

Output

[V/A]

RECTANGULAR PULSE SINEWAVE

Ipeak/f

[A/Hz]

DC sat.

Current

Isat [A]

Max rms

Current

Irms [A]

Peak

Current

Ipeak [A]

Droop

[%/ms]

Rise time

[ns]

I-t capability -3dB Bandwidth

No bias

[mA s]

With bias

[mA s]

lf [Hz] hf [MHz]
13E0050 0.05 3.3 40 660 1200 5.3 10 4.1 22 100 10000
13G0050 0.05

0.32

40 1200 2200 0.5 10 8 3 100 10000
13W0050 0.05 0.06 40 1200 2200 0.1 10 3 0.25 100 10000
13E0100 0.1 10 16 220 400 16 25 1.4 22 60 5000
13G0100 0.1 1 16 400 700 1.6 25 2.5 3 60 5000
13W0100 0.1 0.19 16 300 540 0.3 25 2 0.25 60 5000
13E0200 0.2 38 14 60 110 60 30 0.38 22 33 2500
13G0200 0.2 6.3 14 100 200 10 30 0.7 3 33 2500
13W0200 0.2 0.63 14 40 70 1 30 0.25 0.25 33 2500
13E0500 0.5 225 10 10 18 360 40 0.062 22 14 1000
13G0500 0.5 22 10 15 30 35 40 0.12 3 14 1000
13W0500 0.5 3.15 10 7 13 5 40 0.04 0.25 14 1000
13E1000 1 880 7 2.5 4.5 1400 60 0.016 22 7 500
13G1000 1 82 7 4 7 130 60 0.03 3 7 500
13W1000 1 19 7 4 7 30 60 0.02 0.25 7 500
58EH010 0.01 0.32 80 13000 24000 0.5 5 85 55 400 20000
58MH010 0.01 0.025 80 13000 24000 0.04 5 85 2 400 25000
58E0020 0.02 0.5 200 12000 20000 0.8 2 70 55 500 20000
58M0020 0.02 0.04 200 12000 20000 0.06 2 70 2 500 20000
58E0050 0.05 1.57 80 3400 6000 2.5 5 20 55 200 10000
58M0050 0.05 0.1 80 3400 6000 0.15 5 20 2 200 10000
58E0100 0.1 6.3 40 1000 1800 10 10 6 55 100 5000
58EH100 0.1 12.6 20 400 700 20 20 2 55 100 2500
58M0100 0.1 0.32 40 1000 1800 0.5 10 6 2 100 5000
58MH100 0.1 0.63 20 400 700 1 20 2 2 100 2500
58E0200 0.2 25 20 200 360 40 20 1 55 50 2500
58M0200 0.2 2.5 20 200 360 4 20 1 2 50 2500
58M0500 0.5 9.4 20 40 70 15 20 0.2 2 20 1000
58M1000 1 25 14 10 18 40 30 0.06 2 12 500
89M0100 0.1 0.315 40 10 2600 0.5 10 9 5 100 5000

Accessories

Order numberArticleAttenuation ratioAttenuation toleranceFrequency rangeOutput impedanceInput power, RMS

add to Notepad

ATT10BNCSAttenuator 20dB±0.25dBDC - 50MHz50Ω± 1%2.25W
